Wossner WO-3504-DB Forged Piston Kit is a Premium Series piston Yamaha YZ250F, YZ250FX and WR250F
Wossner WO-3504-DB Premium Series Forged Piston Kit for Yamaha YZ250F, YZ250FX & WR250F – 77.01 mm
The Wossner WO-3504-DB Forged Piston Kit is a Premium Series graded piston designed for selected Yamaha YZ250F, YZ250FX and WR250F four-stroke off-road motorcycles. Featuring a 77.01 mm bore grade, 76.97 mm piston size and a 14.4:1 Wossner compression ratio, it provides the next piston grade for cylinders that require a slightly larger piston after accurate measurement.
Manufactured from high-strength forged aluminium, the WO-3504-DB features Wossner’s Double Bridge Forging construction for increased piston strength and stability under demanding high-RPM conditions. Its two-ring design supports effective sealing and durability, while precision machining helps maintain the correct piston-to-cylinder clearance.
- Premium Series forged graded piston kit
- Suitable for Yamaha WR250F 2020–2023
- 77.01 mm graded bore size
- 76.97 mm finished piston size
- 0.01 mm oversize grade
- 14.4:1 Wossner compression ratio
- 53.60 mm stroke compatibility
- 20.00 mm compression height
- 16 mm wrist pin diameter
- Double Bridge Forging construction
- Two-ring piston design
- Includes piston, wrist pin and circlips
- OEM piston ring is not included
Important: Always confirm your motorcycle make, model, year and cylinder measurements before ordering. The 77.01 mm graded piston must be selected according to the measured cylinder bore and correct piston-to-cylinder clearance. The correct OEM piston ring must be purchased separately.

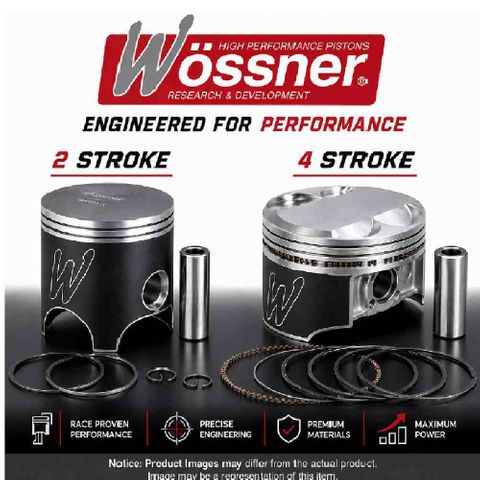

Notice: Product images may differ from the actual product. Images are provided for illustration purposes only and may show a representative item rather than the exact part supplied.
