Wossner Piston Kit WO-8001-D_ – Honda CR250R
Wossner Piston Kit WO-8001-D060 – Honda CR250R

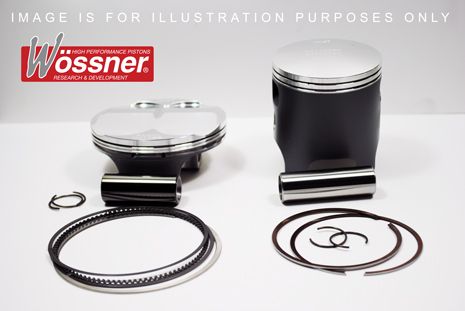

The Wossner WO-8001-D060 Piston Kit is a premium forged replacement piston designed for selected Honda CR250R two-stroke models. Manufactured from high-quality forged aluminium, this piston delivers outstanding strength, durability and reliability for demanding motocross and off-road applications. Featuring a dual-ring design and a +0.60 mm oversize, it provides excellent ring sealing, long service life and consistent engine performance.
Vehicle Applications
- Honda CR250R: 1997–2001
Specifications
- Part Number: WO-8001-D060
- Bore Size: 67.00 mm
- Piston Diameter: 66.94 mm
- Oversize: +0.60 mm
- Piston Clearance: 0.06 mm
- Ring Configuration: Dual Ring
- Piston Ring: RSB6700
- Ring Quantity: 2
- Wrist Pin: WP033
- Wrist Pin Diameter: 18 mm
- Circlips: CW18
- Compression Height: 38.00 mm
- Stroke: 72.00 mm
- Connecting Rod Length: 125.4 mm
- Replacement Connecting Rod: P2021
- Small-End Bearing: N1021
- Top End Gasket Kit: D2008
Features
- Premium forged aluminium construction
- Dual-ring design for excellent sealing and durability
- +0.60 mm oversize for rebored cylinders
- Precision CNC machined for optimum fit and reliability
- Ideal for performance, motocross and off-road engine rebuilds
Important: Please confirm the part number, piston size and vehicle application before ordering. Oversize pistons require the cylinder to be accurately measured and machined to suit. Professional installation is recommended to ensure correct piston-to-cylinder clearance.
Disclaimer: Product images are for illustration purposes only and may differ from the actual product supplied. Vehicle applications and specifications are provided as a guide only. It is the purchaser's responsibility to confirm the part number, dimensions and fitment are correct before installation.
