Wossner Piston Kit WO-8014-D_ – KTM 250 SX
Wossner Piston Kit WO-8014-D050 – KTM 250 SX

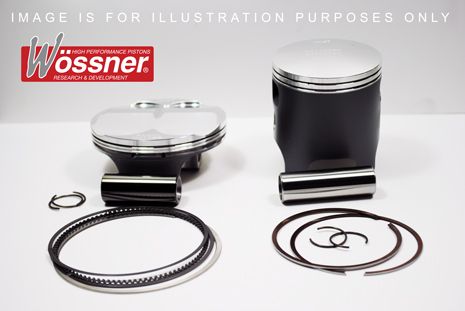

The Wossner WO-8014-D050 Piston Kit is a forged replacement piston designed for the 1995 KTM 250 SX two-stroke motorcycle. Part of Wossner's Standard Series, it features a durable dual-ring design for reliable sealing, strength and consistent engine performance. This piston is supplied in a +0.50 mm oversize configuration for cylinders that have been professionally rebored.
Vehicle Applications
- KTM 250 SX: 1995
Specifications
- Part Number: WO-8014-D050
- Bore Size: 68.00 mm
- Piston Diameter: 67.94 mm
- Oversize: +0.50 mm
- Piston Clearance: 0.06 mm
- Ring Configuration: Dual Ring
- Ring Quantity: 2
- Piston Ring: RSB6800
- Wrist Pin: WP033
- Wrist Pin Diameter: 18 mm
- Circlips: CW18
- Compression Height: 29.70 mm
- Overall Length: 69.50 mm
- Connecting Rod Length: 132.00 mm
- Connecting Rod: P2024
- Small-End Bearing: N1020
- Top End Gasket Kit: C7098
Features
- Wossner Standard Series forged piston
- Dual-ring piston design
- +0.50 mm oversize
- Precision manufactured for reliable two-stroke performance
- Designed for the 1995 KTM 250 SX
Important: Oversize pistons require the cylinder to be accurately measured and professionally machined to suit. Always confirm piston size and engine application before installation.
