Wossner Piston Kit WO-8014-D_ – KTM 250 SX
Stock Code:
WO-8014-D100
Description:
KTM GS/SX250 1995 KTM GS/SX250 1995 (2 RING)
Stock Level
In Stock
$189.95
Wossner Piston Kit WO-8014-D100 – KTM 250 SX
The Wossner WO-8014-D100 Piston Kit is a forged standard-size replacement piston designed for the 1995 KTM 250 SX two-stroke motorcycle. Part of Wossner's Standard Series, it features a durable dual-ring design for reliable sealing, strength and consistent engine performance.
Vehicle Applications
- KTM 250 SX: 1995
Specifications
- Part Number: WO-8014-D100
- Bore Size: 68.50 mm
- Piston Diameter: 67.44 mm
- Size: Standard
- Piston Clearance: 0.06 mm
- Ring Configuration: Dual Ring
- Ring Quantity: 2
- Piston Ring: RSB6850
- Wrist Pin: WP033
- Wrist Pin Diameter: 18 mm
- Circlips: CW18
- Compression Height: 29.70 mm
- Overall Length: 69.50 mm
- Connecting Rod Length: 132.00 mm
- Connecting Rod: P2024
- Small-End Bearing: N1020
- Top End Gasket Kit: C7098
Features
- Wossner Standard Series forged piston
- Standard 67.50 mm bore size
- Dual-ring piston design
- Precision manufactured for reliable two-stroke performance
- Designed for the 1995 KTM 250 SX
Important: Always accurately measure the cylinder and confirm the correct piston size and engine application before installation. Professional installation is recommended.

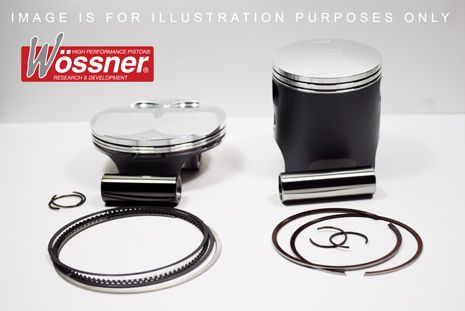

Disclaimer: Product images are for illustration purposes only and may differ from the actual product supplied. Vehicle applications and specifications are provided as a guide only. It is the purchaser's responsibility to confirm the part number, dimensions and fitment are correct before installation.
