The Wossner WO-8016-DA Piston Kit is a forged standard-size replacement piston designed for selected KTM 250cc two-stroke off-road motorcycles. Part of Wossner's Standard Series, it features a durable dual-ring design for excellent sealing, strength and reliable engine performance.

Vehicle Applications

KTM 250 EXC: 1996–1999
KTM 250 MXC: 1996–1999
KTM 250 SX: 1996–1999

Specifications

Part Number: WO-8016-DA
Bore Size: 67.50 mm
Piston Diameter: 67.44 mm
Size: Standard
Piston Clearance: 0.06 mm
Compression Height: 26.70 mm
Overall Length: 69.50 mm
Ring Configuration: Dual Ring
Piston Ring: RSB6750
Wrist Pin: WP033
Wrist Pin Diameter: 18 mm
Circlips: CW18
Connecting Rod: P2024
Small-End Bearing: N1020
Top End Gasket Kit: C7098

Features

Wossner Standard Series forged piston
Standard 67.50 mm bore size
Dual-ring piston design
Precision manufactured for reliable two-stroke performance
Designed for KTM 250 EXC, MXC and SX applications

Important: Always accurately measure the cylinder and confirm the correct piston size and engine application before installation. Professional installation is recommended.

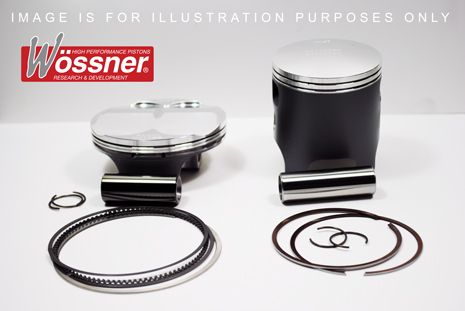

Disclaimer: Product images are for illustration purposes only and may differ from the actual product supplied. Vehicle applications and specifications are provided as a guide only. It is the purchaser's responsibility to confirm the part number, dimensions and fitment are correct before installation.
