Wossner Piston Kit WO-8062-D_ – Kawasaki KX125 2001–2002
Wossner Piston Kit WO-8062-D200 – Kawasaki KX125

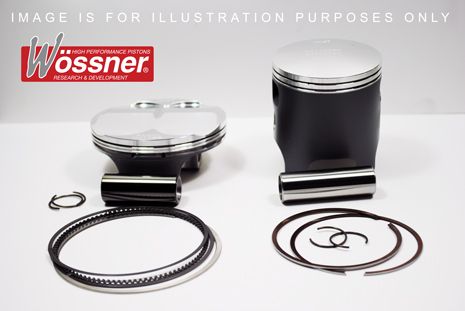

The Wossner WO-8062-D200 Piston Kit is a premium forged replacement piston designed for Kawasaki KX125 two-stroke motocross motorcycles. Manufactured from high-strength forged aluminium, this Standard Series piston features a lightweight single-ring design for excellent throttle response, durability and reliable high-RPM performance. This piston is supplied in a +2.00 mm oversize configuration for professionally rebored cylinders.
Vehicle Applications
- Kawasaki KX125: 2001–2002
Specifications
- Part Number: WO-8062-D200
- Bore Size: 56.00 mm
- Piston Diameter: 55.95 mm
- Oversize: +2.00 mm
- Piston Clearance: 0.05 mm
- Compression Height: 29.30 mm
- Overall Length: 54.50 mm
- Ring Configuration: Single Ring
- Piston Ring: RSB5600
- Wrist Pin: WP032
- Wrist Pin Diameter: 15 mm
- Circlips: CW15
- Connecting Rod Length: 104.00 mm
- Connecting Rod: P2034
- Small End Bearing: N1010
- Top End Gasket Kit: C77621
Features
- Wossner Standard Series forged piston
- Lightweight single-ring design
- +2.00 mm oversize
- Precision manufactured for reliable two-stroke performance
- Designed for Kawasaki KX125 motocross applications
Important: Oversize pistons require the cylinder to be accurately measured and professionally machined to suit. Always confirm piston size and engine application before installation.
Disclaimer: Product images are for illustration purposes only and may differ from the actual product supplied. Vehicle applications and specifications are provided as a guide only. It is the purchaser's responsibility to confirm the part number, dimensions and fitment are correct before installation.
