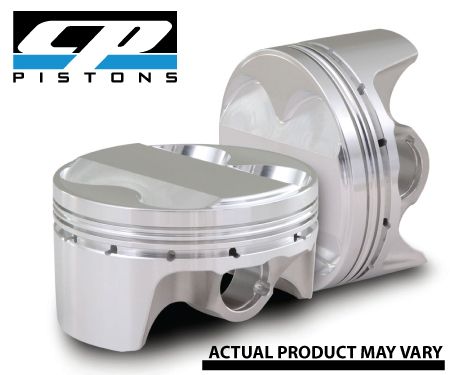

CP-Carrillo MX1026 Yamaha YFZ450 / YFZ450R Forged Piston Kit

CP-Carrillo MX1026 Yamaha YFZ450 / YFZ450R Forged Piston Kit

The CP-Carrillo MX1026 Forged Piston Kit is engineered for 2004–2013 Yamaha YFZ450 and 2009–2018 Yamaha YFZ450R engine builds. Manufactured from premium 2618 forged aluminium, this complete MX Series piston kit features a 95.00 mm standard bore and CP-Carrillo's lightweight fully boxed forging with skirt coating and DLC-coated wrist pin for maximum strength, durability and reduced friction.

Featuring a 13.25:1 compression ratio for the 2004–2013 YFZ450 (439cc) and 13.50:1 compression ratio for the 2009–2018 YFZ450R (449cc), the MX1026 is supplied complete with an S787-2000-15C wrist pin, 787x050 SWL wire locks and a CPN2-2-3740 piston ring set. Matching gasket kits are available separately as C3066-EST (YFZ450) and C7908-EST (YFZ450R).

Features

• Genuine CP-Carrillo MX1026 forged piston kit
• Suits 2004–2013 Yamaha YFZ450 and 2009–2018 Yamaha YFZ450R
• 95.00 mm standard bore
• 13.25:1 (YFZ450) / 13.50:1 (YFZ450R) compression ratio
• Premium 2618 forged aluminium construction
• Fully boxed MX forging with skirt coating
• DLC-coated S787-2000-15C wrist pin included
• Includes 787x050 SWL wire locks
• Includes CPN2-2-3740 piston ring set
• Matching gasket kits: C3066-EST (YFZ450) / C7908-EST (YFZ450R)

The CP-Carrillo MX1026 delivers lightweight performance, exceptional durability and proven race-winning reliability for Yamaha YFZ450 and YFZ450R ATV engine builds.

Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
