CP Pistons SC7222 Mitsubishi EVO X Forged Piston Kit

CP Pistons SC7222 Mitsubishi EVO X Forged Piston Kit

The CP Pistons SC7222 Forged Piston Kit is engineered for the Mitsubishi 4B11T EVO X engine, providing the strength, durability and precision required for high-performance street, drag and circuit racing applications. Manufactured in the USA from premium 2618 forged aluminium, these pistons are CNC machined and weight matched to withstand the extreme demands of high-boost turbocharged engines.

Featuring an 87.00 mm (+1.00 mm oversize) bore and a 9.0:1 compression ratio, the SC7222 offers the perfect combination of durability, boost response and tuning flexibility. Designed with deep valve reliefs for high-lift camshafts and oversized valves, the pistons also feature accumulator grooves, dual forced pin oilers and precision ring packs to maximise sealing performance and wrist pin lubrication.

Features

• Premium 2618 forged aluminium construction

• 87.00 mm (+1.00 mm oversize) bore

• 9.0:1 compression ratio

• Suits Mitsubishi 4B11T EVO X (2008–2015)

• 86 mm stroke

• 143.75 mm connecting rod length

• 23 mm wrist pin

• Deep valve reliefs for high-lift camshafts

• Compatible with +1 mm oversized valves

• Precision CNC machined and weight matched to ±1 gram

• Accumulator grooves

• Dual forced pin oilers

• Includes high-performance piston rings, wrist pins and pin locks

• Ideal for high-boost street, drag and circuit racing builds

Built to CP-Carrillo's renowned motorsport standards, the SC7222 piston kit delivers exceptional strength, consistent performance and long-term reliability, making it an excellent choice for serious Mitsubishi EVO X engine builds.

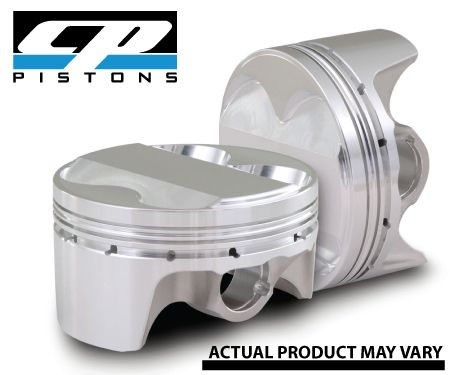

Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
