CP Pistons SC7450 Toyota 3SGTE Forged Piston Kit

Stock Code:
SC7450
Description:
Toyota 3SGTE C4276-051 TOYOTA 3SGTE (86.5mm)
Stock Level
Last One Left
$1,294.95
Find A Dealer

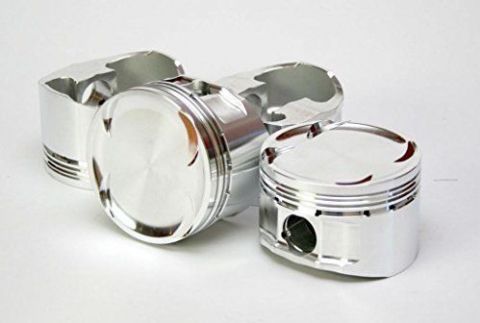

CP Pistons SC7450 Toyota 3SGTE Forged Piston Kit

The CP Pistons SC7450 Forged Piston Kit is engineered for Toyota 3SGTE engine builds, including Celica GT-Four, MR2 Turbo and Caldina GT-T turbocharged applications. Manufactured in the USA from premium 2618 forged aluminium, these pistons are precision CNC machined to deliver exceptional strength, reliability and performance for high-boost street, drag and circuit racing applications. Designed to withstand extreme cylinder pressures, they provide the durability and tuning flexibility expected from CP-Carrillo.

Featuring an 86.50 mm (+0.50 mm oversize) bore, 86 mm stroke compatibility, 138 mm connecting rod length, 34.93 mm compression height, and a 9.0:1 compression ratio, the SC7450 is ideally suited to serious 3SGTE performance engine builds. Deep valve reliefs accommodate high-lift camshafts and oversized valves, while accumulator grooves and dual forced pin oilers maximise ring seal and wrist pin lubrication under demanding operating conditions.

Features

  • Premium 2618 forged aluminium construction

  • 86.50 mm (+0.50 mm oversize) bore

  • 9.0:1 compression ratio

  • Suits Toyota 3SGTE engine builds

  • 86 mm stroke compatibility

  • 138 mm connecting rod length

  • 34.93 mm compression height

  • 22 mm wrist pin

  • Deep valve reliefs for high-lift camshafts

  • Compatible with oversized valves

  • Precision CNC machined and weight matched to ±1 gram

  • Accumulator grooves for improved ring sealing

  • Dual forced pin oilers for enhanced wrist pin lubrication

  • Includes high-performance piston rings, wrist pins and pin locks

  • Fully CNC machined and manufactured in the USA

  • Ideal for high-boost street, drag and circuit racing builds

Manufactured to CP-Carrillo's renowned motorsport standards, the SC7450 piston kit delivers outstanding strength, precise fitment and long-term durability, making it an excellent choice for serious Toyota 3SGTE performance engine builds.


Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
