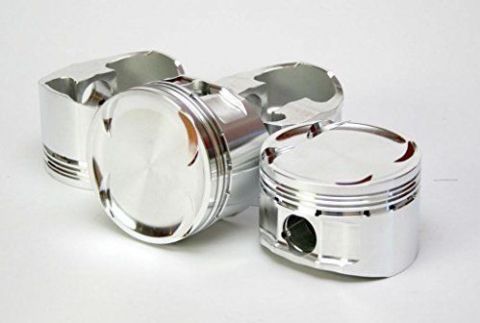

CP Pistons SC7473 Toyota 1JZ-GTE Forged Piston Kit

CP Pistons SC7473 Toyota 1JZ-GTE Forged Piston Kit

The CP Pistons SC7473 Forged Piston Kit is engineered for Toyota 1JZ-GTE turbocharged engine builds. Manufactured in the USA from premium 2618 forged aluminium, these pistons are precision CNC machined to deliver exceptional strength, reliability and performance for high-boost street, drag and circuit racing applications. Designed to withstand extreme cylinder pressures, they provide the durability and tuning flexibility expected from CP-Carrillo. :contentReference[oaicite:0]{index=0}

Featuring an 87.00 mm (+1.00 mm oversize) bore, 71.5 mm stroke compatibility, 125.25 mm connecting rod length, 34.0 mm compression height, and a 9.0:1 compression ratio, the SC7473 is ideally suited to serious 1JZ-GTE performance engine builds. Deep valve reliefs accommodate high-lift camshafts and +1 mm oversized valves, while accumulator grooves and dual forced pin oilers maximise ring seal and wrist pin lubrication under demanding operating conditions. :contentReference[oaicite:1]{index=1}

Features

• Premium 2618 forged aluminium construction

• 87.00 mm (+1.00 mm oversize) bore

• 9.0:1 compression ratio

• Suits Toyota 1JZ-GTE turbo engine builds

• 71.5 mm stroke compatibility

• 125.25 mm connecting rod length

• 34.0 mm compression height

• 22 mm wrist pin

• Deep valve reliefs for high-lift camshafts

• Compatible with +1 mm oversized valves

• Precision CNC machined and weight matched to ±1 gram

• Accumulator grooves for improved ring sealing

• Dual forced pin oilers for enhanced wrist pin lubrication

• Includes high-performance piston rings, wrist pins and pin locks

• Fully CNC machined and manufactured in the USA

• Ideal for high-boost street, drag and circuit racing builds

Manufactured to CP-Carrillo's renowned motorsport standards, the SC7473 piston kit delivers outstanding strength, precise fitment and long-term durability, making it an excellent choice for serious Toyota 1JZ-GTE performance engine builds.

Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
