CP Pistons SC7653 Toyota 4A-GE 16V Forged Piston Kit

Stock Code:
SC7653
Description:
Toyota 4AG 16V C4605-040 TOYOTA 4AG 16V
Stock Level
Last One Left
$1,294.95
Find A Dealer

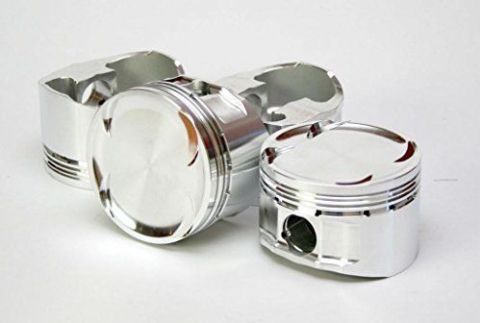

CP Pistons SC7653 Toyota 4A-GE 16V Forged Piston Kit

The CP Pistons SC7653 Forged Piston Kit is engineered for Toyota 4A-GE 16V naturally aspirated performance engine builds. Manufactured in the USA from premium 2618 forged aluminium, these pistons are precision CNC machined to deliver exceptional strength, reliability and performance for high-performance street, circuit and motorsport applications. Designed to withstand sustained high RPM operation, they provide the durability, lightweight performance and tuning flexibility expected from CP-Carrillo. :contentReference[oaicite:0]{index=0}

Featuring an 81.50 mm (+0.50 mm oversize) bore, 77 mm stroke compatibility, 122 mm connecting rod length, 30.7 mm compression height, and a 12.0:1 compression ratio, the SC7653 is ideally suited to naturally aspirated 4A-GE 16V race and performance engine builds. Deep valve reliefs accommodate high-lift camshafts and +1 mm oversized valves, while accumulator grooves and dual forced pin oilers maximise ring seal and wrist pin lubrication under demanding operating conditions. :contentReference[oaicite:1]{index=1}

Features

  • Premium 2618 forged aluminium construction

  • 81.50 mm (+0.50 mm oversize) bore

  • 12.0:1 compression ratio

  • Suits Toyota 4A-GE 16V naturally aspirated engine builds

  • 77 mm stroke compatibility

  • 122 mm connecting rod length

  • 30.7 mm compression height

  • 20 mm wrist pin

  • Deep valve reliefs for high-lift camshafts

  • Compatible with +1 mm oversized valves

  • Precision CNC machined and weight matched to ±1 gram

  • Accumulator grooves for improved ring sealing

  • Dual forced pin oilers for enhanced wrist pin lubrication

  • Includes high-performance piston rings, wrist pins and pin locks

  • Fully CNC machined and manufactured in the USA

  • Ideal for naturally aspirated street, circuit and motorsport applications

Manufactured to CP-Carrillo's renowned motorsport standards, the SC7653 piston kit delivers outstanding strength, precise fitment and long-term durability, making it an excellent choice for serious Toyota 4A-GE 16V naturally aspirated performance engine builds.


Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
