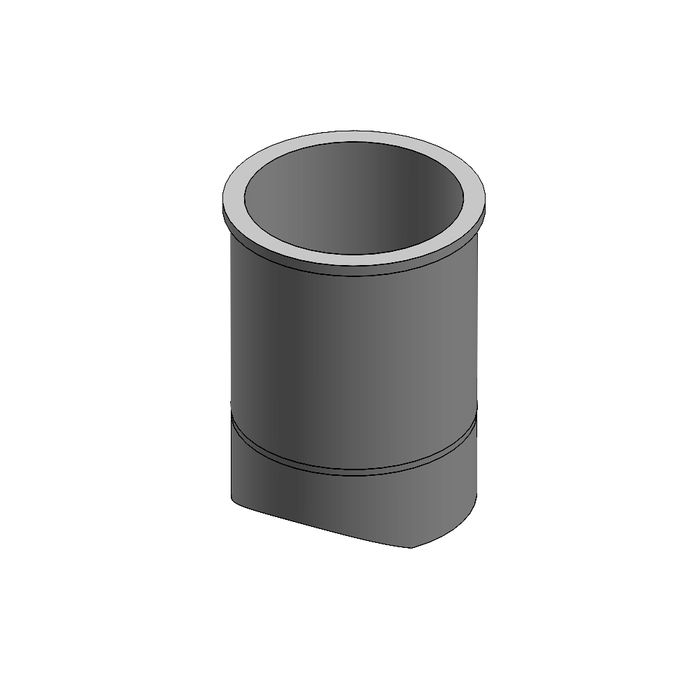

Advanced Sleeve Honda Xr250R 1986-2004 Id: 73-77Mm Flanged
Stock Code:
3120FA
Description:
CYL SLEEVE HON XR250R 86-04 73-77MM
Stock Level
Last One Left
$184.95
Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
| CYLINDER TYPE | RS - Replacement Sleeve |
|---|---|
| HORSEPOWER | N/A |
| CC | 250 |
| # CYLINDER | No |
| OVER ALL LENGTH | 4.430" |
| BORE SIZE | 73mm |
| SLEEVE OUTER DIAMETER | 3.192" |
| FLANGE THICKNESS | .155" |
| RELIEF DIAMETER | 3.180" |
| RELIEF HEIGHT | 1.200" / 1.300" |
| EXHAUST PORT HEIGHT | (Skirt 2.625 Wide x .390" Deep) |
- CYCLE - DIRT/ROAD HONDA XR250R 1986
- CYCLE - DIRT/ROAD HONDA XR250R 1987
- CYCLE - DIRT/ROAD HONDA XR250R 1988
- CYCLE - DIRT/ROAD HONDA XR250R 1989
- CYCLE - DIRT/ROAD HONDA XR250R 1990
- CYCLE - DIRT/ROAD HONDA XR250R 1991
- CYCLE - DIRT/ROAD HONDA XR250R 1992
- CYCLE - DIRT/ROAD HONDA XR250R 1993
- CYCLE - DIRT/ROAD HONDA XR250R 1994
- CYCLE - DIRT/ROAD HONDA XR250R 1995
- CYCLE - DIRT/ROAD HONDA XR250R 1996
- CYCLE - DIRT/ROAD HONDA XR250R 1997
- CYCLE - DIRT/ROAD HONDA XR250R 1998
- CYCLE - DIRT/ROAD HONDA XR250R 1999
- CYCLE - DIRT/ROAD HONDA XR250R 2000
- CYCLE - DIRT/ROAD HONDA XR250R 2001
- CYCLE - DIRT/ROAD HONDA XR250R 2002
- CYCLE - DIRT/ROAD HONDA XR250R 2003
- CYCLE - DIRT/ROAD HONDA XR250R 2004
