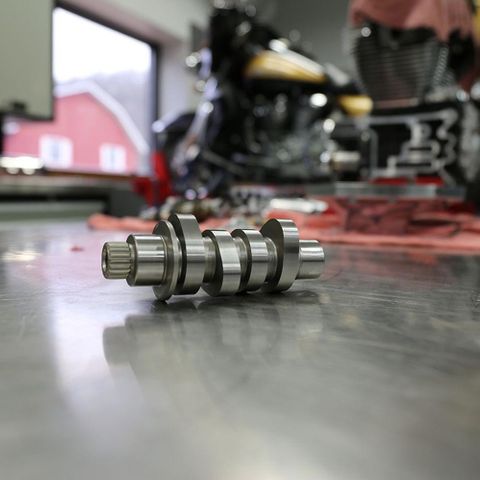

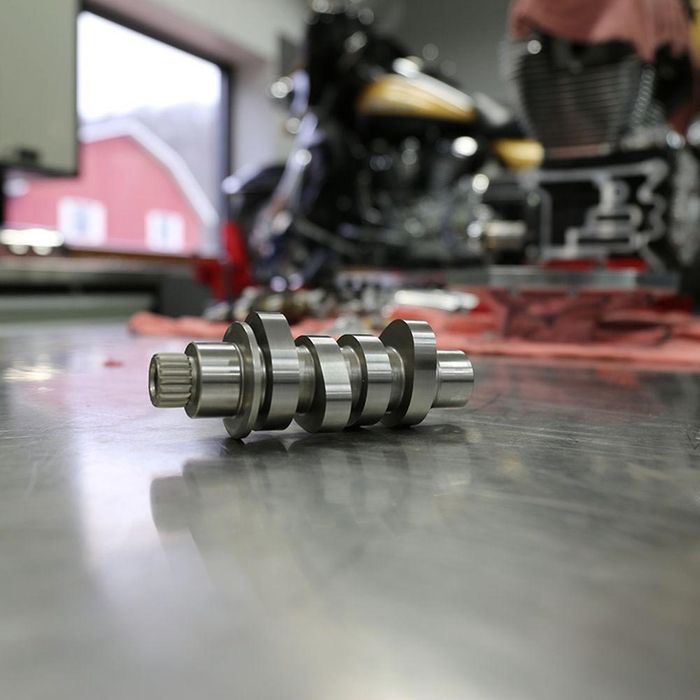

S&S 465C Chain Drive Camshaft Kit For 2017-'20 M8 Models
Stock Code:
SS-330-0620
Stock Level
In Stock
$406.95
Features & Benefits
- Bolt-in! Compatible with all stock valve train components
- 465C chain drive provide increased torque and horsepower
- Kits include all required bearings, o-rings, and hardware
- Made in the USA
Suggested:
930-0123 Quickee Adjustable Pushrods with Cover Keepers for 2017-up M8 Models (Save labor and time! Eliminate the need to remove the rocker boxes and coolant lines)
330-0175 Precision Tappet Set Without HL2T Kit For 1999-'17 HD Big Twins, 2000-'16 HD? Sportster? and 2017-up M8 Models (Tappets should be replaced every time that the cam is replaced)
| Intake | Exhaust |
Overlap
|
|||||||||||
| Cylinder | Open | Close | Dur | Center | Valve Lift | TDC Lift | Open | Close | Dur | Center | Valve Lift | TDC Lift | |
| Front | 2.6 | 14.6 | 197.2 | 96.0 | 0.462 | 0.087 | 30.1 | 8.8 | 218.9 | 100.6 | 0.462 | 0.109 | 11.4 |
| Rear | 2.8 | 14.4 | 197.2 | 95.8 | 0.462 | 0.088 | 33.1 | 5.8 | 218.9 | 103.6 | 0.462 | 0.098 | 8.6 |
Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
