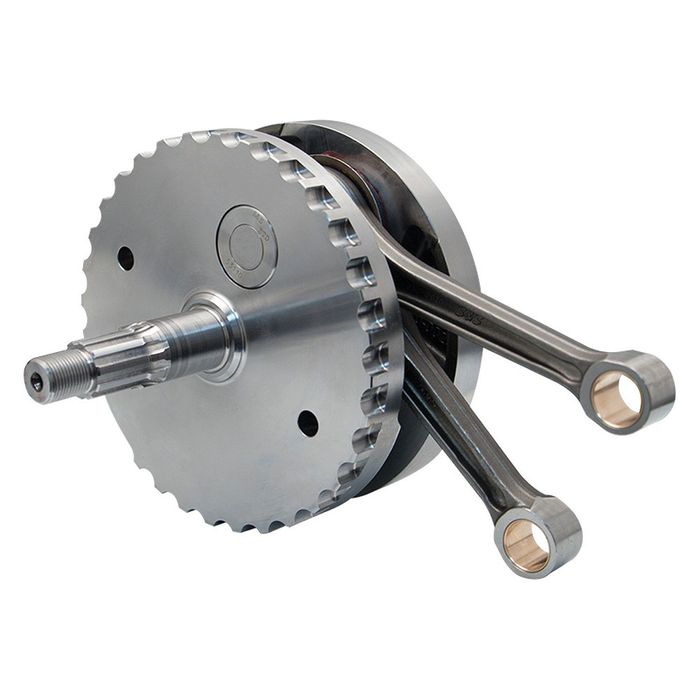

S&S 4-5/8" Stroke Flywheel Assembly W/O Sprocket Shaft Bearing Race For 2007-'16 Internally Balanced Hd Big Twins
This 4-5/8" stroke 8-1/2" diameter flywheel assembly fits 2007-'16 internally balanced HD? big twin models as part of an S&S? 124" Hot Set Up Kit?. Sprocket shaft does not have a stock style bearing race pressed on. This flywheel assembly is for crankcases with Timken? sprocket shaft bearing. Pinion shaft has sprocket to drive balancer chain. Flywheel assembly is three piece design. Pinion and sprocket shafts are forged as part of the flywheel. The only joints in the assembly are where the 1.671" diameter connecting rod crankpin is pressed into the flywheels. Flywheels are CNC machined from heat-treated, closed die, steel forgings, which are 114% stronger than late style stock steel flywheels. Fully assembled with premium quaility S&S? heavy duty 7.667" connecting rods, with full width wrist pin ends, and dynamically balanced. Assembly is trued to less than .0005" runout on pinion and sprocket shaft bearing surfaces, making them capable of higher rpm and fully compatible with gear drive cams.
Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
