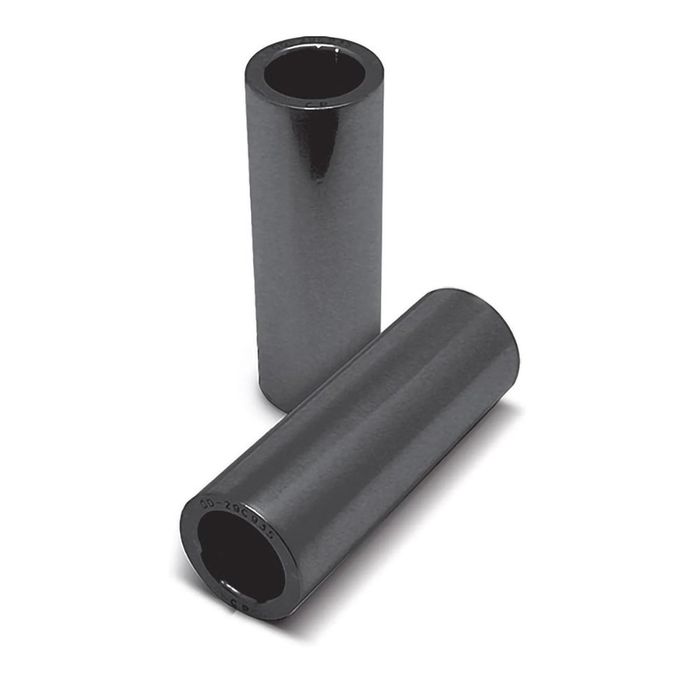

CP-Carrillo 927-2750-13CP3C 9310 Steel DLC Wrist Pin

CP-Carrillo 927-2750-13CP3C 9310 Steel DLC Wrist Pin

The CP-Carrillo 927-2750-13CP3C Wrist Pin is a premium high-performance gudgeon pin engineered for demanding street, drag, circuit and motorsport engine applications. Manufactured in the USA from premium 9310 alloy steel, this wrist pin features a Diamond-Like Carbon (DLC) coating to provide exceptional wear resistance, reduced friction and increased durability under extreme engine loads. CP-Carrillo wrist pins are engineered to deliver outstanding strength while minimising reciprocating weight for maximum engine performance. :contentReference[oaicite:0]{index=0}

Featuring a 0.927 inch (23.55 mm) diameter, 2.750 inch (69.85 mm) length and 0.130 inch (3.30 mm) wall thickness, the 927-2750-13CP3C is precision manufactured using a case-hardened 9310 steel alloy. Each pin is gun drilled, triple-honed internally, cryogenically treated and precision ground to deliver maximum strength, consistent weight and exceptional reliability in high-performance engine builds. :contentReference[oaicite:1]{index=1}

Features

• Premium 9310 alloy steel construction

• Diamond-Like Carbon (DLC) coated for reduced friction and superior wear resistance

• 0.927 inch (23.55 mm) wrist pin diameter

• 2.750 inch (69.85 mm) overall length

• 0.130 inch (3.30 mm) wall thickness

• Straight wall, chamfered design

• Case hardened using a computer-controlled gas process

• Gun drilled with three-stage internal honing

• Cryogenically treated for improved material strength and grain structure

• Precision ground ends with internal radius

• Weight matched to ±1 gram

• Ideal for high-performance street, drag and circuit racing applications

• Manufactured in the USA

Manufactured to CP-Carrillo's renowned motorsport standards, the 927-2750-13CP3C wrist pin delivers exceptional strength, reduced friction and long-term durability, making it the ideal choice for serious high-performance engine builds. :contentReference[oaicite:2]{index=2}

Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
