CP-Carrillo MX4011A Suzuki LT-R450 Forged Piston Kit

CP-Carrillo MX4011A Suzuki LT-R450 Forged Piston Kit

The CP-Carrillo MX4011A Forged Piston Kit is engineered for 2006–2011 Suzuki LT-R450 high-performance engine builds. This precision-engineered forged piston provides excellent strength, durability and reliable performance for demanding ATV racing and off-road applications.

Featuring a 95.50 mm standard bore, 62.8 mm stroke, 450cc engine capacity and a 13.5:1 compression ratio, the MX4011A has a 0.963-inch compression height, a 2.57cc dome and weighs approximately 267 grams. It is designed for use with the PSR8811A connecting rod with a rod length of 106.98 mm. The kit includes an S748-2000-15C wrist pin, 748x050 SWL locks and a CPN2-2-3759 ring set.

Features

• Fits Suzuki LT-R450 2006–2011
• 95.50 mm standard bore
• 62.8 mm stroke
• 450cc engine capacity
• 13.5:1 high-compression design
• 0.963-inch compression height
• Approximately 267-gram piston weight
• Includes wrist pin, locks and piston rings

The CP-Carrillo MX4011A delivers increased compression, strong throttle response and race-proven durability for high-performance Suzuki LT-R450 engine builds.

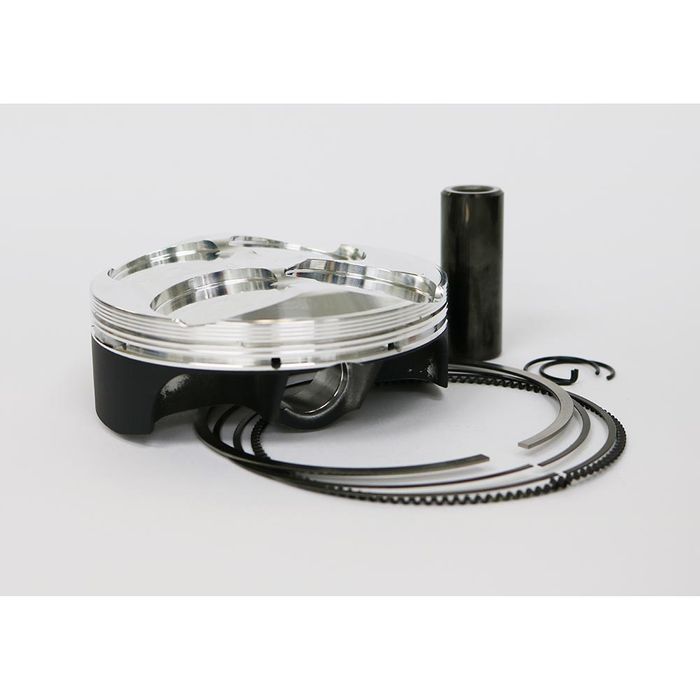

Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
