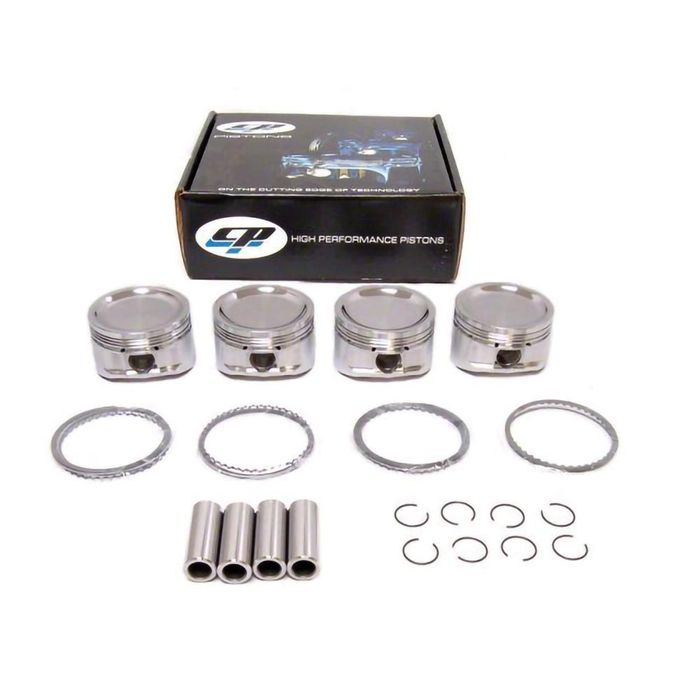

CP Pistons SC73241 Nissan SR20DE/DET Forged Piston Kit

CP Pistons SC73241 Nissan SR20DE/DET Forged Piston Kit

The CP Pistons SC73241 Forged Piston Kit is engineered for Nissan SR20DE and SR20DET engine builds requiring exceptional strength, reliability and performance. Manufactured in the USA from premium 2618 forged aluminium, these pistons are precision CNC machined to deliver outstanding durability for high-boost street, drag and circuit racing applications. Designed to withstand extreme cylinder pressures and demanding operating conditions, they provide the strength and tuning flexibility expected from CP-Carrillo.

Featuring an 86.00 mm (standard) bore, 86 mm stroke compatibility, 136.25 mm connecting rod length, 32.0 mm compression height, and an 8.5:1 compression ratio, the SC73241 is ideally suited to turbocharged engine builds, offering excellent detonation resistance and tuning flexibility. Deep valve reliefs accommodate high-lift camshafts and +1 mm oversized valves, while accumulator grooves and dual forced pin oilers maximise ring seal and wrist pin lubrication under demanding operating conditions. :contentReference[oaicite:0]{index=0}

Features

• Premium 2618 forged aluminium construction

• 86.00 mm standard bore

• 8.5:1 compression ratio

• Suits Nissan SR20DE and SR20DET engine builds

• 86 mm stroke compatibility

• 136.25 mm connecting rod length

• 32.0 mm compression height

• 22 mm wrist pin

• Deep valve reliefs for high-lift camshafts

• Compatible with +1 mm oversized valves

• Precision CNC machined and weight matched to ±1 gram

• Accumulator grooves for improved ring sealing

• Dual forced pin oilers for enhanced wrist pin lubrication

• Includes high-performance piston rings, wrist pins and pin locks

• Fully CNC machined and manufactured in the USA

• Ideal for high-boost street, drag and circuit racing builds

Manufactured to CP-Carrillo's renowned motorsport standards, the SC73241 piston kit delivers outstanding strength, precise fitment and long-term durability, making it an excellent choice for serious Nissan SR20DE and SR20DET performance engine builds. :contentReference[oaicite:1]{index=1}
