CP-Carrillo CPN-3386 86.00mm Piston Ring Set

CP-Carrillo CPN-3386 86.00mm Piston Ring Set

The CP-Carrillo CPN-3386 Piston Ring Set is engineered for compatible 86.00mm CP-Carrillo forged piston assemblies. Designed specifically for high-performance and motorsport engines, this premium ring package provides exceptional cylinder sealing, reduced friction and outstanding oil control for maximum engine efficiency and reliability. :contentReference[oaicite:15]{index=15}

Designed for a 3.386 inch (86.00mm) bore, the CPN-3386 incorporates a 1.0mm gas-nitrided steel top ring, 1.2mm THG Napier second ring and a 2.8mm low-tension flex-vent oil ring. It is commonly used with Mitsubishi Evo VIII & IX 86.00mm (+1.00mm) CP-Carrillo forged piston kits. :contentReference[oaicite:16]{index=16}

Features

• Designed for 86.00mm (3.386") bore

• 1.0 / 1.2 / 2.8mm ring package

• Gas-nitrided steel top ring

• THG Napier second ring

• Low-tension flex-vent oil ring

• Excellent compression retention

• Outstanding oil control

• Compatible with Nikasil, Alusil and cast-iron bores

• Suitable for naturally aspirated and forced-induction engines

• Supplied as a complete ring set for one piston

The CPN-3386 provides the sealing performance and durability expected from genuine CP-Carrillo racing components for demanding street and motorsport applications. :contentReference[oaicite:17]{index=17}

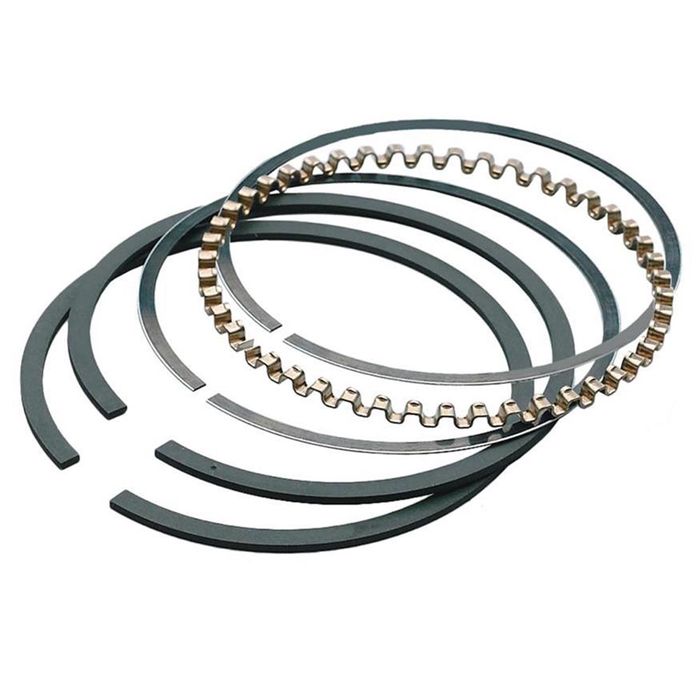

Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
