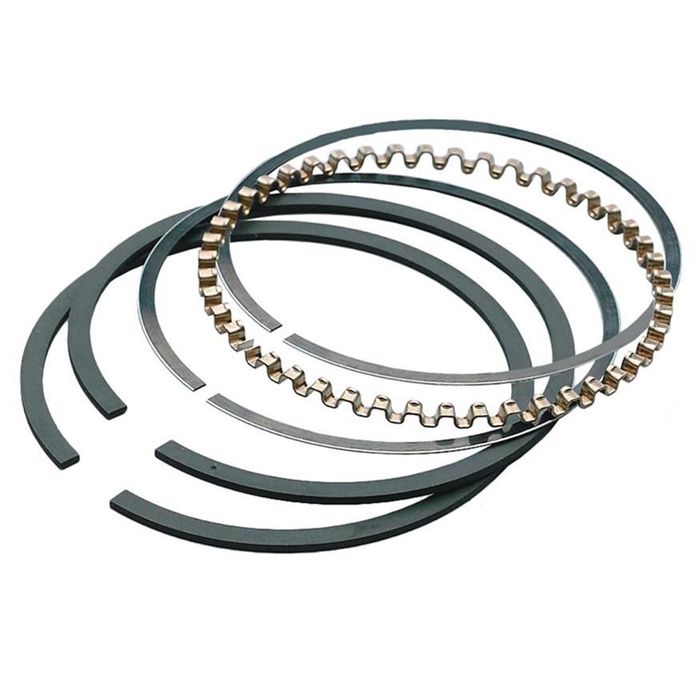

CP-Carrillo CPN2-2-3759 97.00mm Piston Ring Set

CP-Carrillo CPN2-2-3759 97.00mm Piston Ring Set

The CP-Carrillo CPN2-2-3759 Piston Ring Set is a premium replacement ring package engineered to restore optimum sealing, compression retention and oil control in compatible 97.00mm (3.759 inch) CP-Carrillo forged piston assemblies. Designed specifically for high-cylinder-pressure sport compact and performance engines, the CPN2 series combines premium ring materials with a low-friction design to deliver exceptional durability and consistent performance in naturally aspirated and forced-induction applications.

Designed for a 97.00mm (3.759 inch) bore, the CPN2-2-3759 incorporates a 1.0mm gas-nitrided steel top compression ring, a 1.2mm taper hook groove (THG) Napier-style second ring and a 2.0mm low-tension oil control ring. Compatible with Nikasil, Alusil and cast-iron cylinder bores, it provides exceptional compression retention, low friction and excellent oil control for demanding performance engine builds.

Features

• Genuine CP-Carrillo CPN2 piston ring set

• Designed for a 97.00mm (3.759 inch) cylinder bore

• 1.0mm gas-nitrided steel top compression ring

• 1.2mm THG Napier-style second ring

• 2.0mm low-tension oil control ring

• Excellent cylinder sealing and compression retention

• Optimised oil control for reduced oil consumption

• Low-friction design for improved engine efficiency

• Compatible with Nikasil, Alusil and cast-iron cylinder bores

• Suitable for naturally aspirated and forced-induction engines

• Ideal for street, drag and circuit racing applications

• Supplied as a complete ring set for one piston

Designed to complement CP-Carrillo's renowned forged piston range, the CPN2-2-3759 Piston Ring Set delivers the durability and sealing performance required for professional engine rebuilds and serious motorsport applications.

Please Note: Images may be for illustration purposes only and reflect the class of product and not the specific model.
