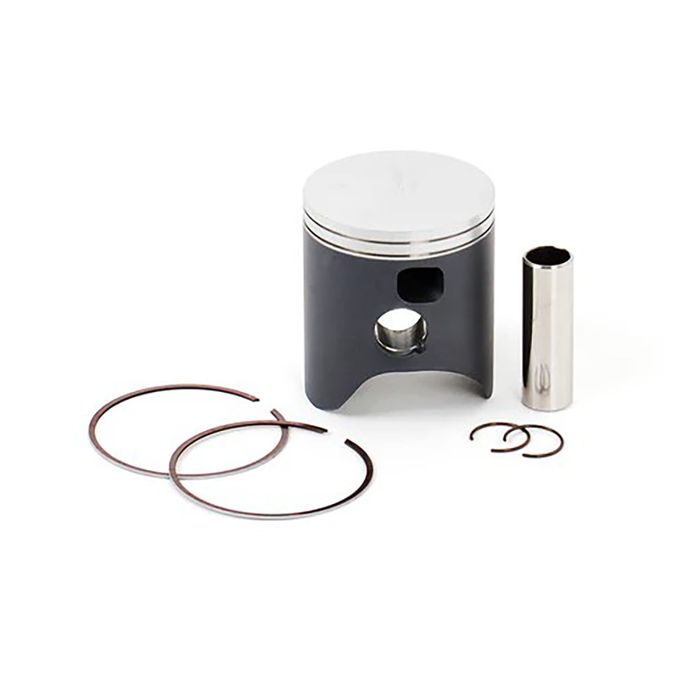

Wossner Piston Kit WO-8067-D_ – Honda CR125R 2000-2003
Wossner Piston Kit WO-8067-D300 – Honda CR125R
The Wossner WO-8067-D300 Piston Kit is a premium forged replacement piston designed for Honda CR125R two-stroke motocross motorcycles. Part of Wossner's Standard Series, this piston features a lightweight single-ring design with intake window and off-centre-line pinning for reliable high-RPM performance. This piston is supplied in a +3.00 mm oversize configuration for professionally modified cylinders.
Vehicle Applications
- Honda CR125R: 2000–2002
- Honda CR125R: 2003
Specifications
- Part Number: WO-8067-D300
- Bore Size: 57.00 mm
- Piston Diameter: 56.95 mm
- Oversize: +3.00 mm
- Piston Clearance: 0.05 mm
- Compression Height: 28.00 mm
- Overall Length: 54.50 mm
- Ring Configuration: Single Ring
- Piston Ring: RSB5700
- Wrist Pin: WP032
- Wrist Pin Diameter: 15 mm
- Circlips: CW15
- Connecting Rod Length: 104.00 mm
- Connecting Rod: P2009
- Small End Bearing: N1047
- Top End Gasket Kit: D2004 – 2000–2002 / C3220 – 2003-2004
- Piston Design: Standard Series – Single Ring – Intake Window – Pinning Off C/L
Features
- Premium forged aluminium construction
- Lightweight single-ring design
- Intake window piston configuration
- +3.00 mm oversize
- Precision manufactured for modified Honda CR125R engines
Important: This is a substantial oversize piston and requires the cylinder to be professionally measured and machined to suit. Always confirm the required bore size and engine configuration before installation.
Disclaimer: Product images are for illustration purposes only and may differ from the actual product supplied. Vehicle applications and specifications are provided as a guide only. It is the purchaser's responsibility to confirm the part number, dimensions and fitment are correct before installation.
